HYTEM LAYER LB CAGE SYSTEMS is the Next Generation of Layer Breeder Cage System with most advanced features which has been integrally developed taking in experiences and requirements of parent farms.

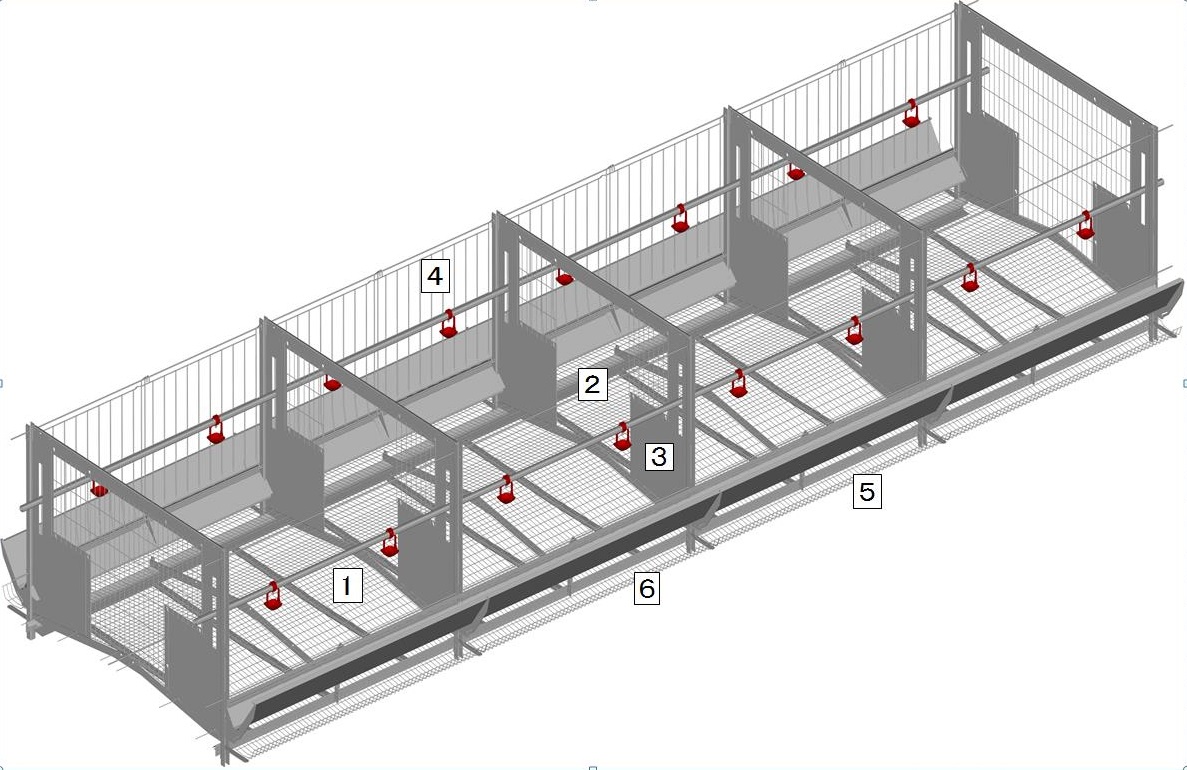

Advantages

1. PARENT GENTLE FLOOR with stable feature to secure high fertility and Gentle feature to minimize cracked eggs.


2. MOST DESIRABLE CAGE SIZE backed up by field experience
Cage depth with the least cracked eggs and with the best cost performance of investment
Increased cage height 30mm higher (H seires: Compared to S seires)
The favorable circumstance for the better hatchability

3. CORNER PANELPATENT moderating the tendency that eggs are laid at the partition area

4. SLIDING DOOR which is allowing adjustable nipple line height.

5. GENTLE WIRE (Optional) to minimize cracked eggs controlling roll out of eggs by stainless wire

6. EGG BELT STEPPING OPERATION which will moderate the egg accumulation problem at the partition area

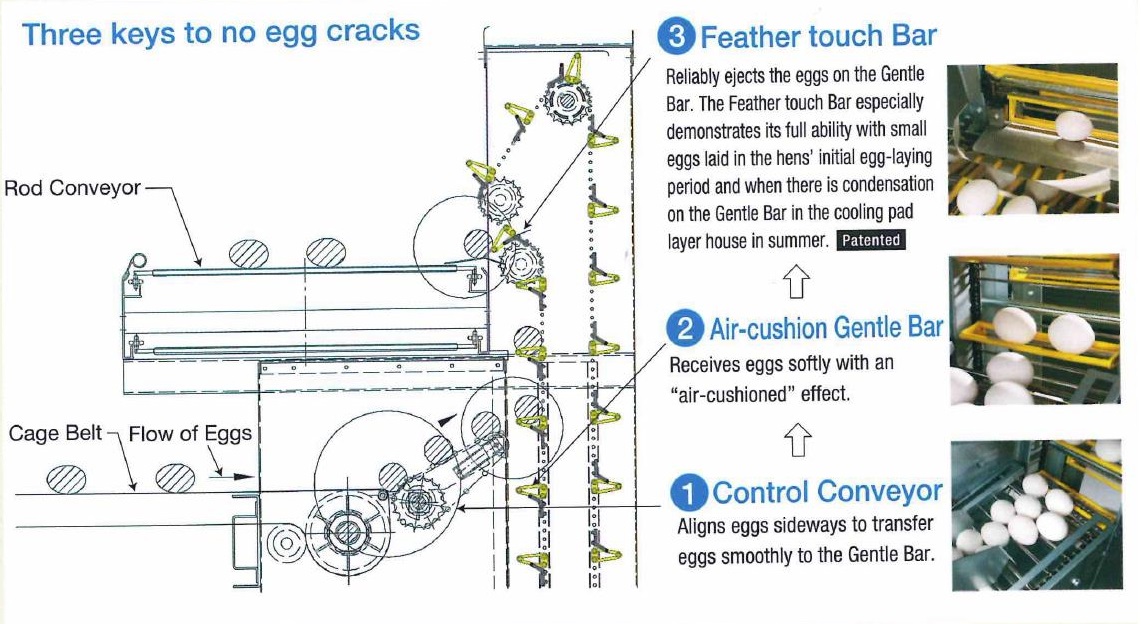

7. The most advanced EGG COLLECTOR in the industry newly developed
No cracked eggs!

8. Trouble-free and the most hygienic MANURE GEARING

Scraper is firmly supported by 4 supporters with red arrows

Full-width pinch roller
Non slip and stable manure collecting



360°Auto stop
Controling manure belt operation time in seconds.
Manure belt on a ceiling side is controlled to be on the ceiling side.

9. 3types of feeders are available. Level Feeder (Feed Trolley), Chain Feeder and Ultraflex.

10. 2steps ahead MANURE DRYING systems
Hytem Seconov Drying system by exhausted air from the house, or Air pipe drying.

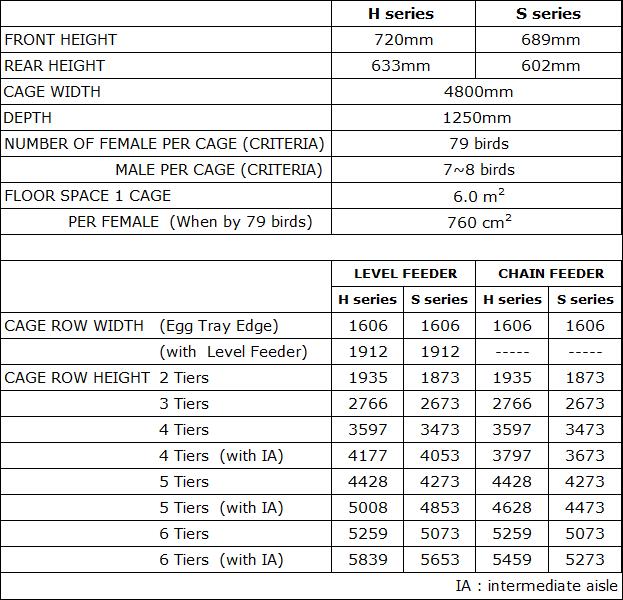

Specifications




Installation examples
